BC-250 - Extra Models (STL Files)

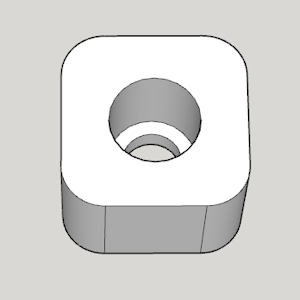

Download	Slim Fan Adapter If you're using 15mm "Slim" Fans rather than Standard 25mm Fans, use this on the underside of the top-right corner of the Exhaust Fan to boost its height. This is the part that will rest against the small shelf of the Top Panel (shown in Assembly Step 11). It adds 10mm of height to the fan so that it fits like a 25mm fan.
Download	Universal Power Supply Switch Connector This connector is designed to bridge the PS_ON and GND pins on any ATX 24-pin motherboard connector. It accommodates two wires fitted with 5558 Crimp Terminals (male connector). It's recommended to print this model using a 0.2mm nozzle.

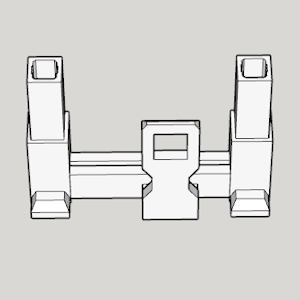

Download	Power Supply Switch Connector for Apevia Modular Flex ATX PSU This connector is designed to bridge the PS_ON and GND pins on the Apevia 400W and 500W Flex ATX PSU 14-pin connector. It accommodates two wires fitted with 5556 Crimp Terminals (female connector). DO NOT USE with other power supplies without first verifying the pinouts. Doing so could destroy the power supply and/or any attached components.
Download	Power Supply Switch Connector for T.F.Skywind Modular Flex ATX PSU This connector is designed to bridge the PS_ON and GND pins of the T.F.Skywind 350W Flex ATX PSU connector. It accommodates two wires fitted with 5556 Crimp Terminals (female connector). DO NOT USE with other power supplies without first verifying the pinouts. Doing so could destroy the power supply and/or any attached components.
Download	Extra Support for Exhaust Fan w/ Logo This support extends from the lower slots of the duct assembly to provide additional support for the Exhaust Fan (for normal 25mm-thick fans). It lines up with the small shelf extending out of the Top Panel. The vent slots and Pocket Adventures.com logo are purely decorative. If the shelf on the Top Panel ever breaks off, this can replace its functionality.
Download	Small Slot Cover for Upper Duct Assembly This slot cover fits into the extra slots of the Inner Duct Wall (Top) to further channel airflow toward the BC-250 board. If you forgo using a front fan, you'll need four units rather than two to cover all of the slots.

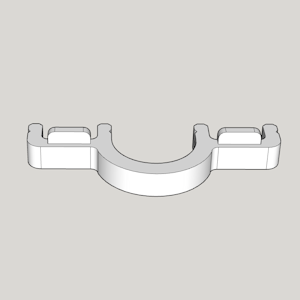

Download	Fan Cable Clip/Slot Cover for Lower Duct Assembly This cable clip/slot cover fits into the extra pair of slots on the Inner Duct Wall (Bottom) to further channel airflow toward the BC-250 board, while also providing routing for the Intake and Exhaust Fan cables.
